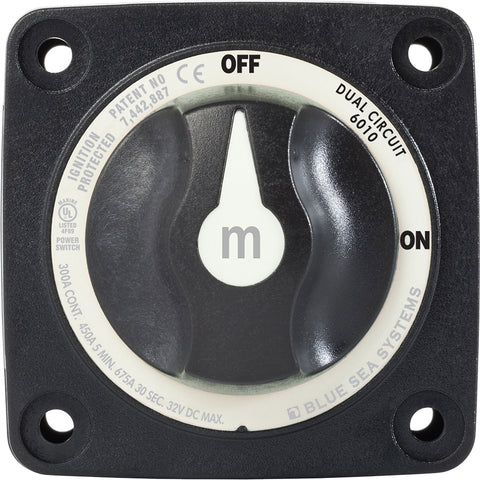

m-Series Mini Dual Circuit Battery Switch - Black

Simultaneously switches two isolated battery banks.

Switch Type: tDual Circuit
Color:tBlack
Switch Positions:t2
Battery Combine:tNo
Alternator Field Disconnect: tNo
Maximum Voltage:t32V DC
Continuous Rating :t300A
Intermittent Rating :t450A (5 min)
Cranking Rating 10 sec: t1000A
Cranking Rating 1 min: t650A
Battery Inputs:t2
Cable Clearance For 4/0 AWG Cables:t1.12in (28.45 mm)
Cable Size to Meet Ratings:t4/0 AWG (120mm²)
Mounting Holes: tAccept #10 Screw
Terminal Stud Size:t3/8"-16 (M10)
Terminal Stud Torque:t120 in-lb (13.56 Nm)
Weight:t0.80lb (0.36 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AFD: No
• Continuous Amperage: 300a
• Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs
• UPC: 632085601027
